ULDS

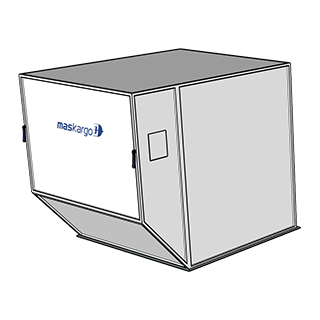

AKE
Base Dimensions 1,534 mm × 1,562 mm (60.4 in × 61.5 in)
Height 1,630 mm (64.2 in)
Internal Volume 3.5 m³ (123 ft³)
Tare Weight 65–90 kg (143–198 lb)
Max Gross Weight 1,588 kg (3,500 lb)

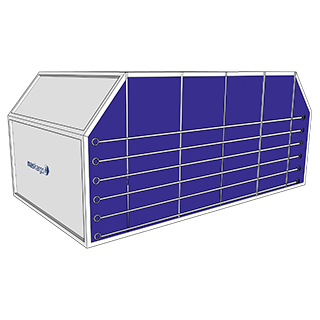

AAK
Base Dimensions 1,534 mm × 1,562 mm (60.4 in × 61.5 in)
Height 1,140 mm (44.9 in)
Internal Volume 2.5 m³ (88.3 ft³)
Tare Weight 70–90 kg (154–198 lb)
Max Gross Weight 1,270 kg (2,800 lb)
Contour Half-width lower deck container, optimized for smaller cargo items
PIP
Base Dimensions 88 in × 125 in (2,235 mm × 3,175 mm)
Usable Height 2440 mm (96in)
Tare Weight 110 kg (243 lb)
Max Gross Weight 6,804 kg (15,000 lb)
PAG
Base Dimensions 88 in × 125 in (2,235 mm × 3,175 mm)
Usable Height 2280 mm (90in)
Tare Weight 120 kg – 150 kg (265 lb – 330 lb)
Max Gross Weight 6,804 kg (15,000 lb)

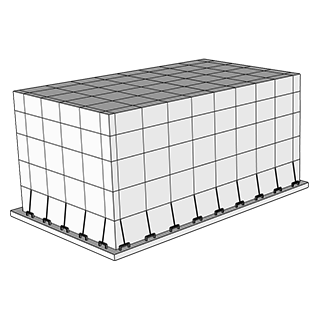

PAJ
Base Dimensions 88 in × 108 in (2,235 mm × 2,743 mm)
Usable Height 2440 mm (96in)
Tare Weight 120–150 kg (265–330 lb)
Max Gross Weight 4,626 kg (10,200 lb)
PMC
Base Dimensions 96 in × 125 in (2,438 mm × 3,175 mm)
Usable Height 2440 mm (96in)
Tare Weight 105–120 kg (231–265 lb)
Max Gross Weight 6,804 kg (15,000 lb)
PLA
Base Dimensions 60.4 in × 125 in (1,534 mm × 3,175 mm)
Usable Height 1625 mm (64in)
Tare Weight 70–120 kg (154–265 lb)
Max Gross Weight 4,626 kg (10,200 lb)
PLB
Base Dimensions 61.5 in × 125 in (1,562 mm × 3,175 mm)
Usable Height 1625 mm (64in)
Tare Weight 70–120 kg (154–265 lb)
Max Gross Weight 4,626 kg (10,200 lb)

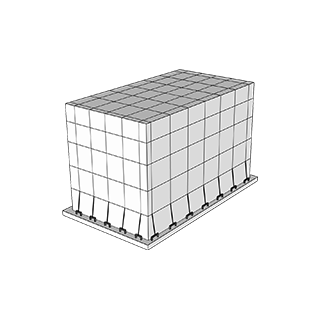

PGE
Base Dimensions 96 in × 125 in (2,438 mm × 3,175 mm)
Usable Height 2440 mm (96in)
Tare Weight 100–130 kg (220–287 lb)
Max Gross Weight 6,804 kg (15,000 lb)

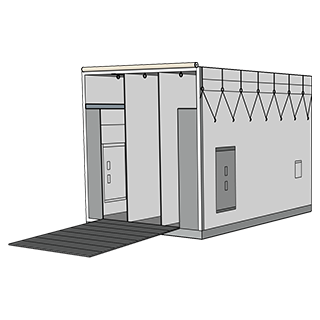

HMD
Base Dimensions 60.4 in × 88 in (1,534 mm × 2,235 mm)
Usable Height 1625 mm (64in)
Tare Weight 70–120 kg (154–265 lb)
Max Gross Weight 4,000 kg (8,818 lb)

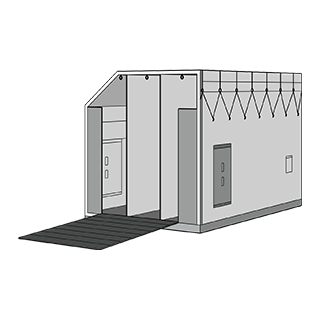

HML
Base Dimensions 60.4 in × 88 in (1,534 mm × 2,235 mm)
Usable Height 1625 mm (64in)
Tare Weight 80–120 kg (176–265 lb)
Max Gross Weight 4,000 kg (8,818 lb)
